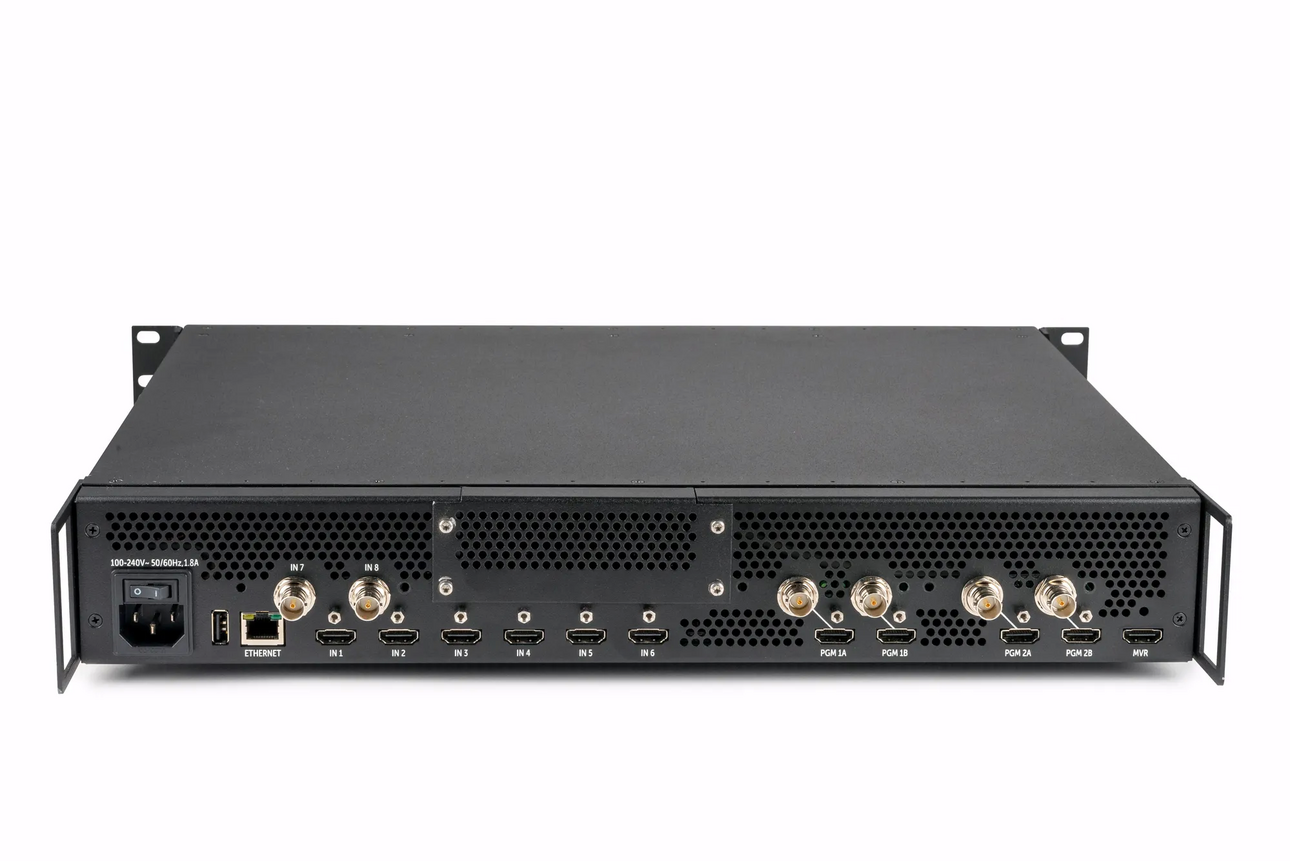

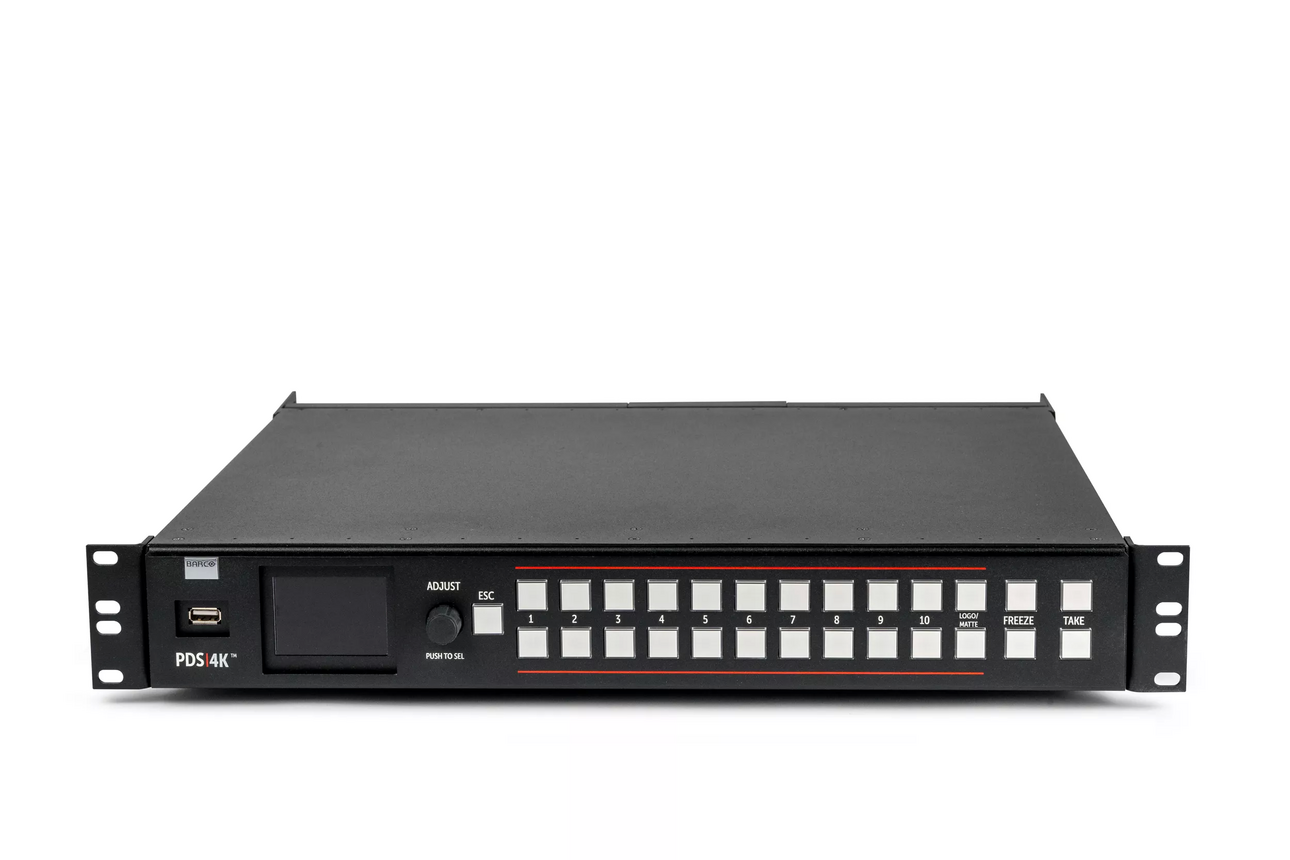

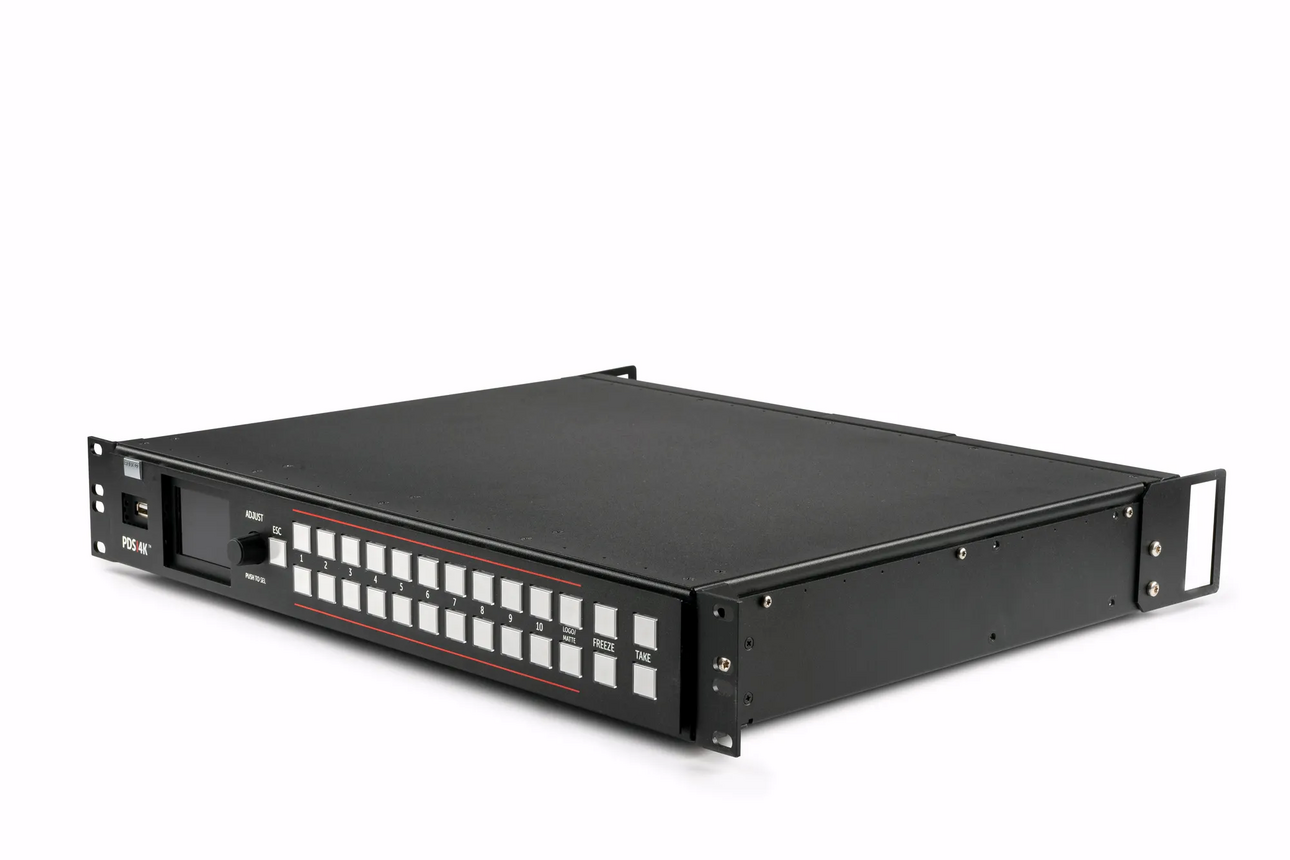

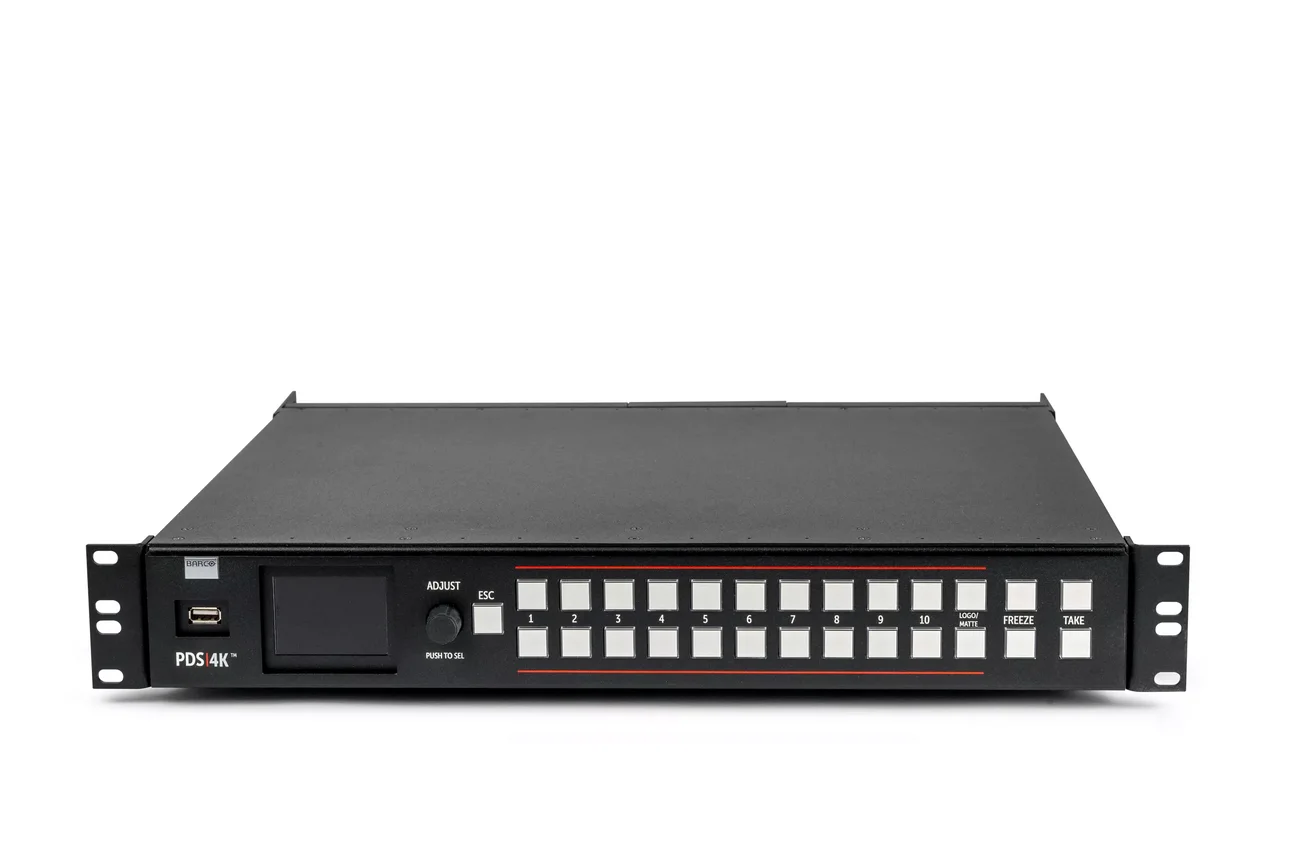

The Barco PDS-4K SDI is a professional presentation switcher specifically developed for demanding AV installations in boardrooms, lobbies, multi-purpose auditoriums as well as medium-sized live events and seminar rooms. The device processes 4K signals and offers six HDMI 2.0 and two 12G-SDI inputs. Four HDMI 2.0 and four 12G-SDI outputs enable flexible single, dual or quad screen switching. The Event Master Athena™ scaling technology ensures seamless mixing across four fully seamless program outputs. With a latency of maximum 2 frames at 60 Hz, the switcher operates responsively. Control is via the programmable front panel, the Event Master screen management software or WebUI. An option card slot allows retrofitting of additional video connections, embedded audio processing or Dante Audio.
• Flexible multi-screen management: Up to four independent 4K outputs (2× 4K60 or 4× 4K30) enable versatile display scenarios – from single image to quad screen setup.
• Seamless live switching without image loss: The fully seamless mixing technology guarantees uninterrupted transitions – ideal for professional presentations and live events.
• Expandable and future-proof: The option card slot provides room for additional interfaces such as DisplayPort 1.2 or Dante audio routing and thus adapts to individual project requirements.
More info about Barco PDS 4K SDI
Barco PDS-4K SDI – 4K Presentation Switcher with SDI and Seamless Multi-Screen Switching
