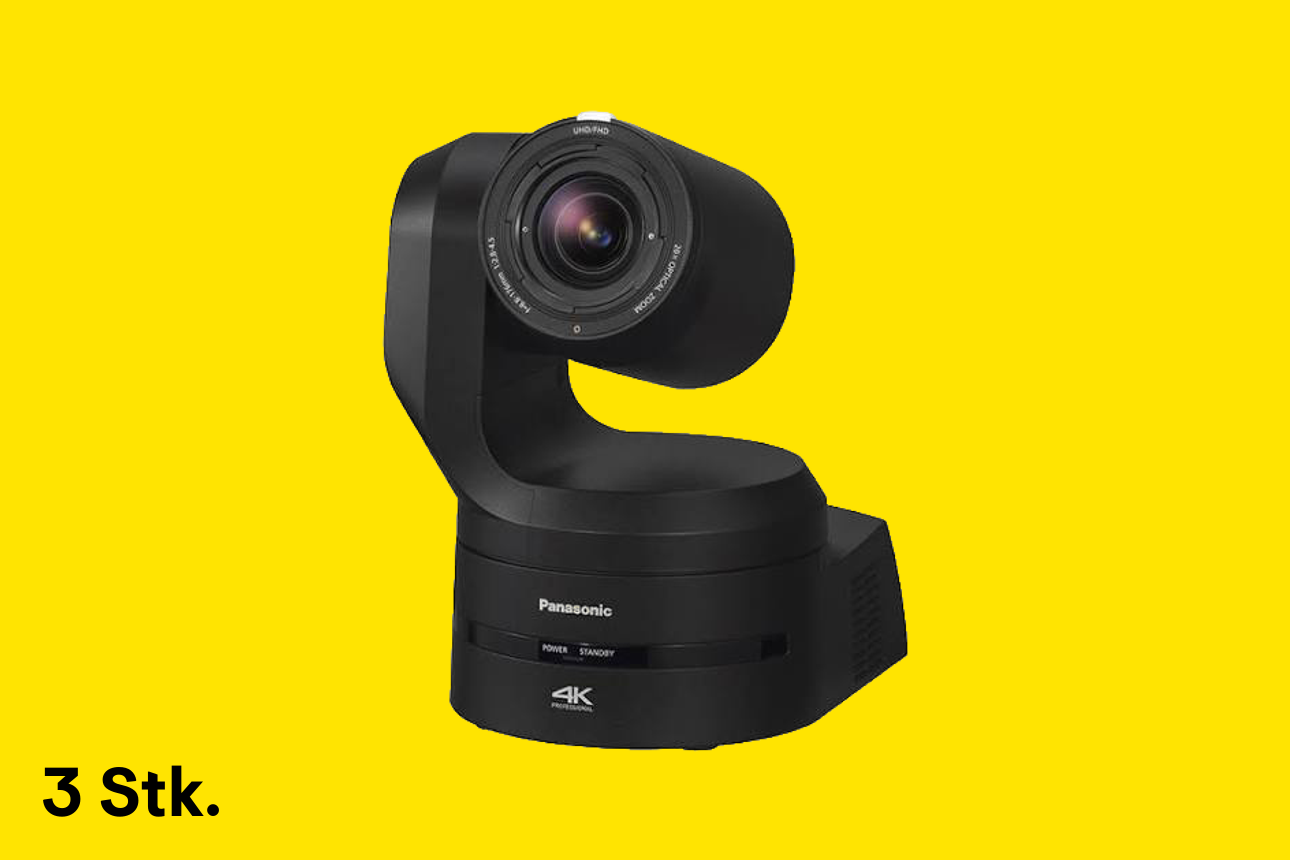

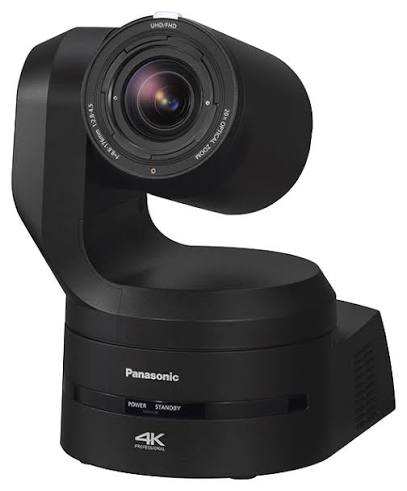

The Panasonic AW-UE160 sets new standards for professional PTZ cameras: The newly developed 1-inch MOS sensor with 9.6 MP achieves a sensitivity of F14/2000 lx, delivering studio camera quality. The motorised 20x zoom lens (8.8 mm to 176 mm) covers a horizontal angle of view of 75.1°. The camera outputs UHD 4K 60p via 12G-SDI, HDMI, fibre optic and IP streaming and supports FHD 120 fps for slow-motion recordings. As the first PTZ camera, it supports SMPTE ST2110 for video transmission over IP networks (with separately available software key AW-SFU60), integrates High-Bandwidth NDI with up to 250 Mbps and offers SRT for stable transmission over public lines. The new optical low-pass filter reduces moiré effects when shooting LED walls. With pan range ±175 degrees, tilt range -30 to +210 degrees, two XLR audio channels, ND filters, V-Log support and FreeD protocol for AR/VR systems, the AW-UE160 is versatile. 3 units are now available in our rental inventory in Switzerland – in the colour variants pearl white (AW-UE160W) and matt black (AW-UE160K).
• First PTZ camera with SMPTE ST2110 and High-Bandwidth NDI – ideal for modern IP-based production environments and seamless integration into existing broadcast workflows
• Highest sensitivity of the Panasonic PTZ range thanks to 1-inch sensor – brilliant image quality even in challenging lighting conditions and at large-scale events without additional lighting

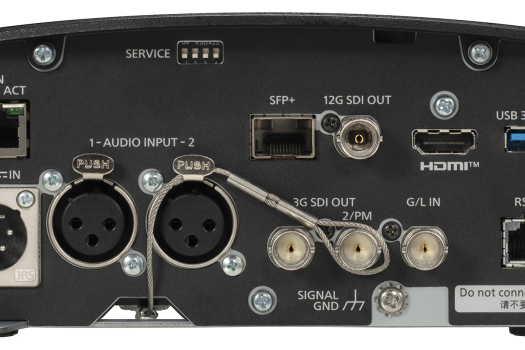

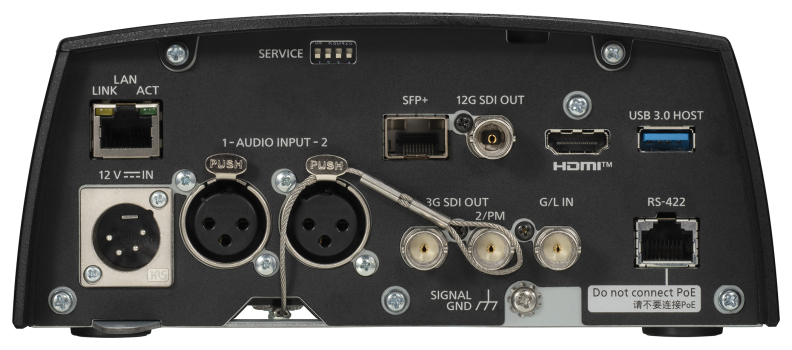

• Versatile outputs (12G-SDI, HDMI, IP, fibre optic) and comprehensive features (V-Log, FreeD, cropping function) – maximum flexibility for studio, live streaming and AR/VR productions
More info about Panasonic PTZ AW-UE160
Panasonic AW-UE160: 4K PTZ Camera with SMPTE ST2110 and 1-Inch Sensor
